Drilling and milling head, angular, left hand, short collet chuck, ER40, external and central coolant supply
| Part Number | 7.077.882 |
| for | BMT BMT75 * |
| Ratio | 2:1 |
| rpm at Input | max. 3000 rpm |
| rpm at Output | max. 1500 rpm |
| Torque at Output | max. 100 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets |
| Accessories | Collets see Equipment for Toolholders Z2.1 Wrench for spindle 0.002.277 PRECI-FLEX® Adapter Coolant tubes 0.000.378 Collet nut 15812 |
Additional CAD Files:

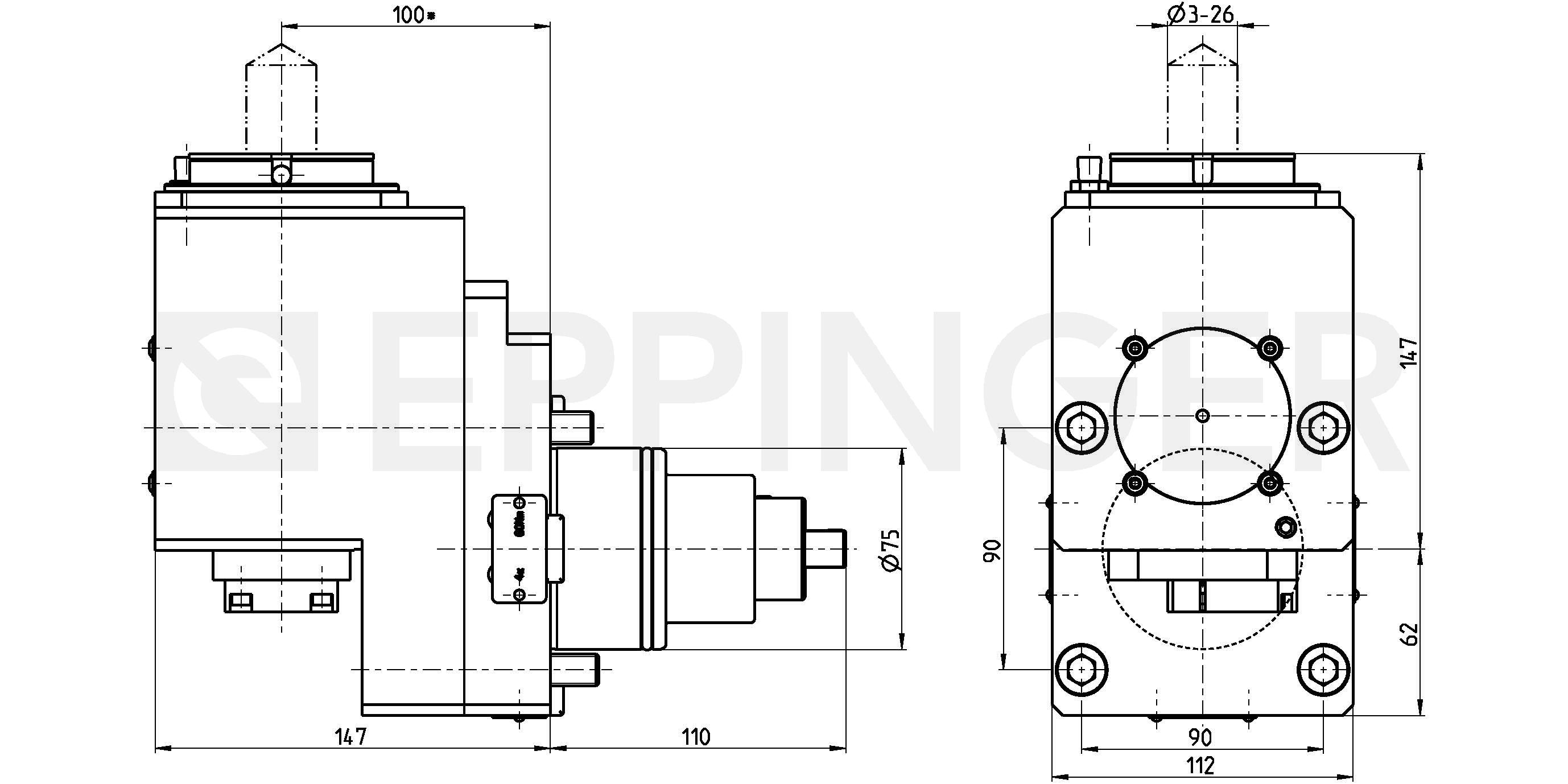

2D-View

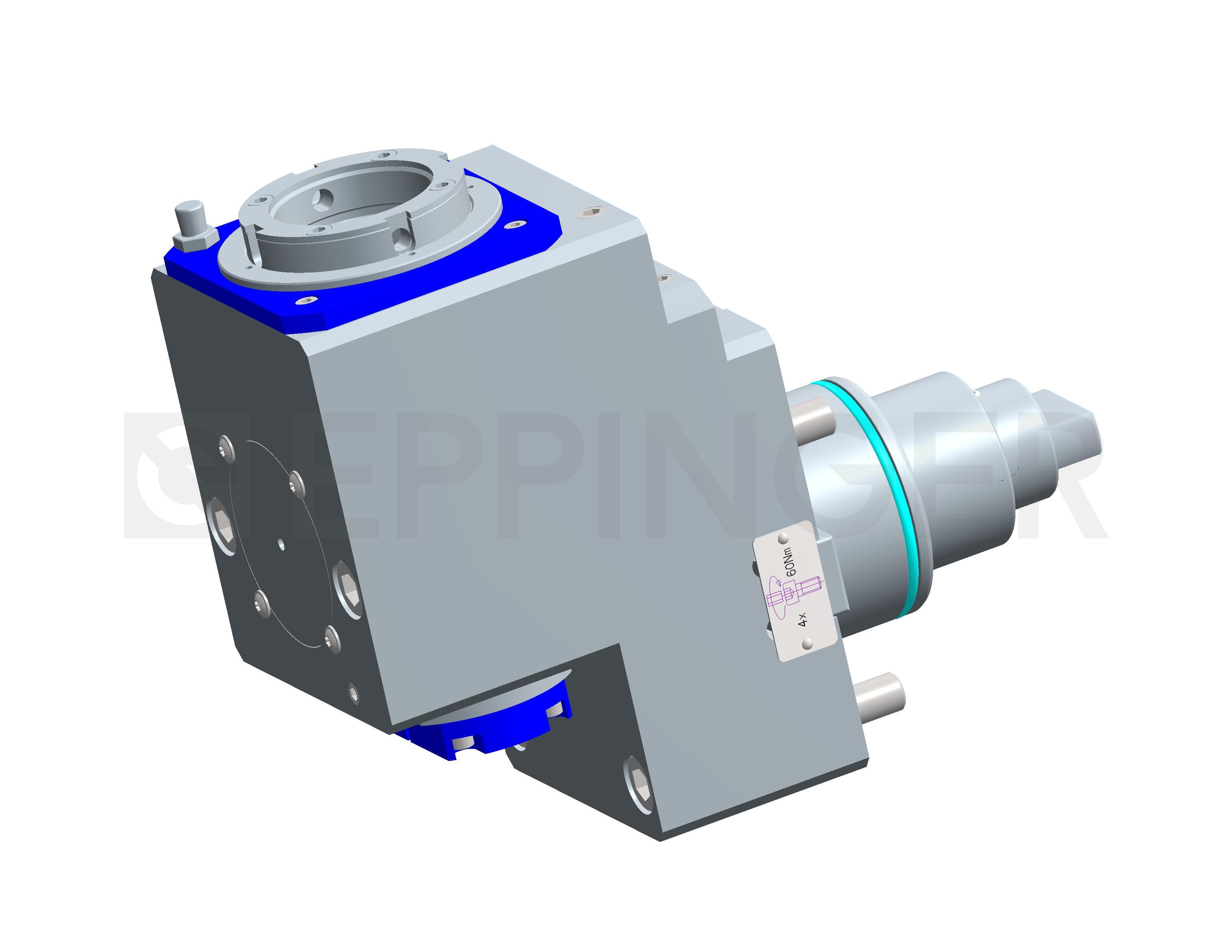

3D-View
2D-View
3D-View / QR-Code
