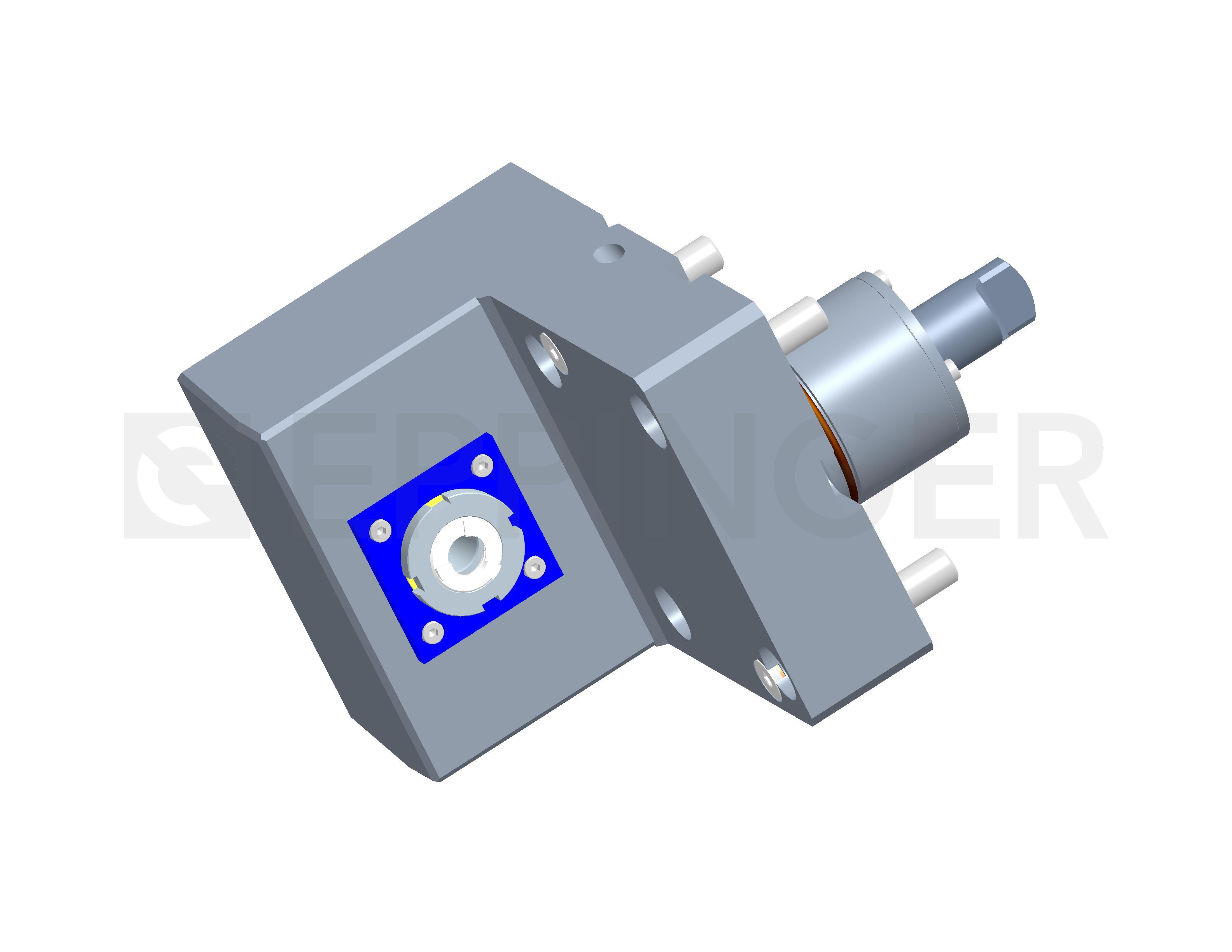

Drilling and milling head, angular-Y, left hand collet chuck, ER20A, PRECI-FLEX®, external coolant supply
| Part Number | 1088684 |
| for | DMG MORI NL/NLX1500/2000/2500/3000/4000-750 (BMT60) 12 Stationen |
| Ratio | 1:1 |
| rpm at Input | max. 8000 rpm |
| rpm at Output | max. 8000 rpm |
| Torque at Output | max. 25 Nm |
| Direction of Rotation |  |
| Scope of Delivery | without wrench and collets Important ! two disk stations are required |
| Accessories | Collets see Equipment for Toolholders Z2.1 Wrench for spindle 10006 |
Additional CAD Files:

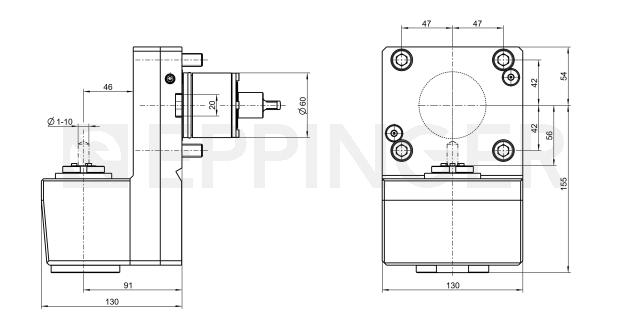

2D-View
3D-View

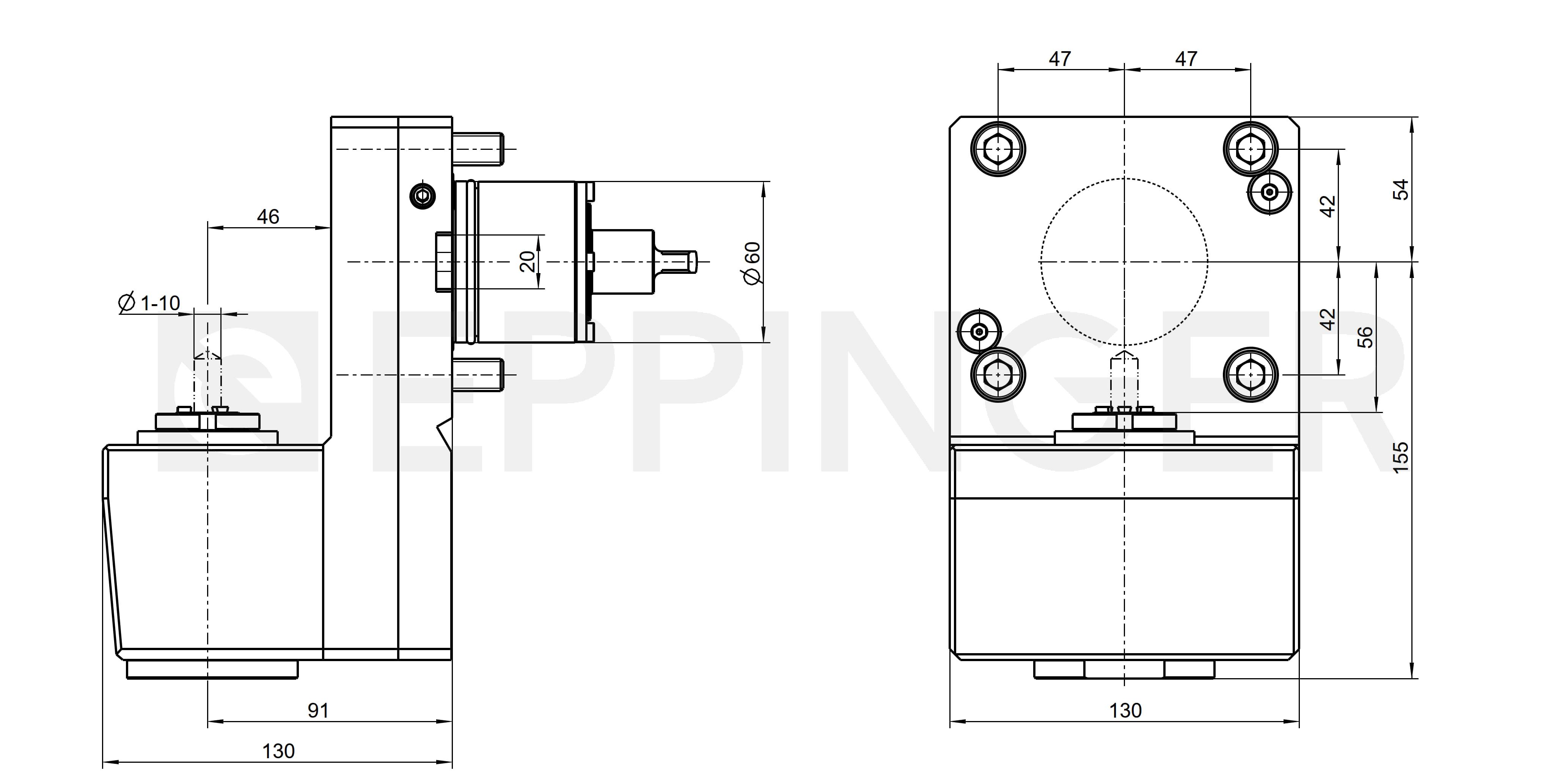

2D-View
3D-View / QR-Code
