Drilling and milling head, angular, left hand - right hand collet chuck, ER32A, PRECI-FLEX®, CC external coolant supply

Part Number 7.171.888
for 2 Machines
Ratio1:1
rpm at Inputmax. 5000 rpm
rpm at Outputmax. 5000 rpm
Torque at Outputmax. 70 Nm
Direction of Rotation
Scope of Deliverysupplied with wrench, excluding collets
AccessoriesCollets see Equipment for Toolholders Z2.1 PRECI-FLEX® Adapter Spindle cover see P99.1
Additional CAD Files:

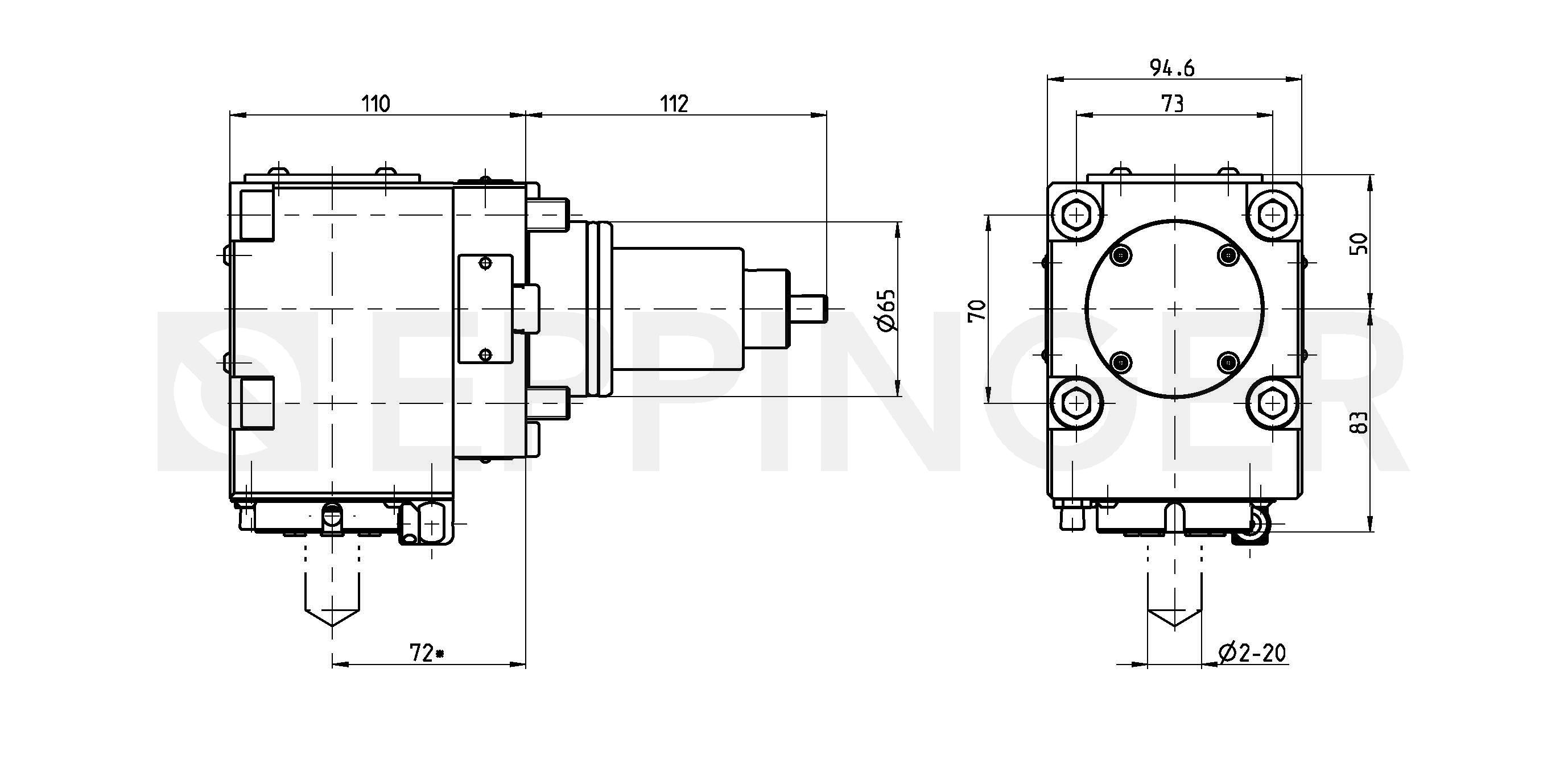

2D-View

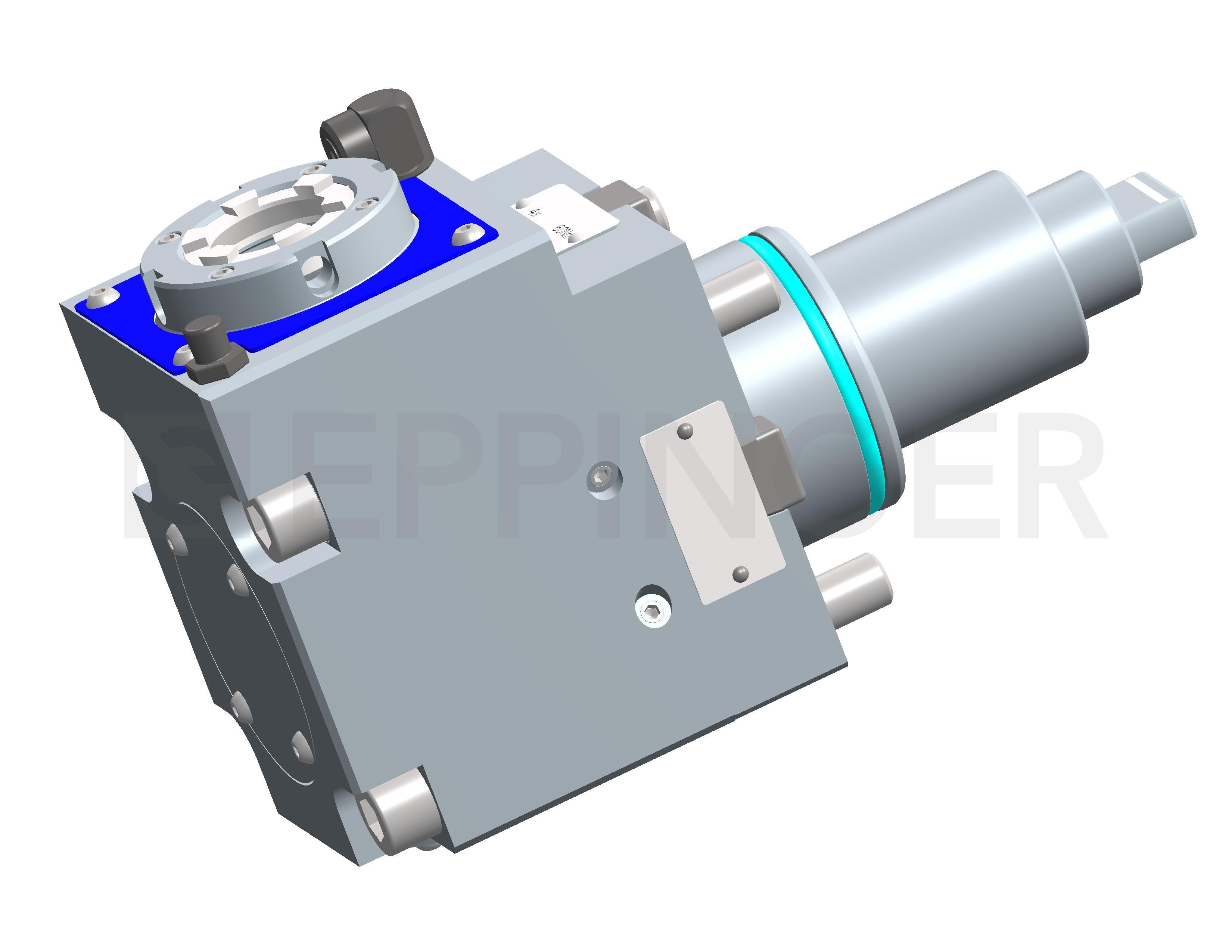

3D-View
2D-View
3D-View / QR-Code

Upload to Smart Phone
