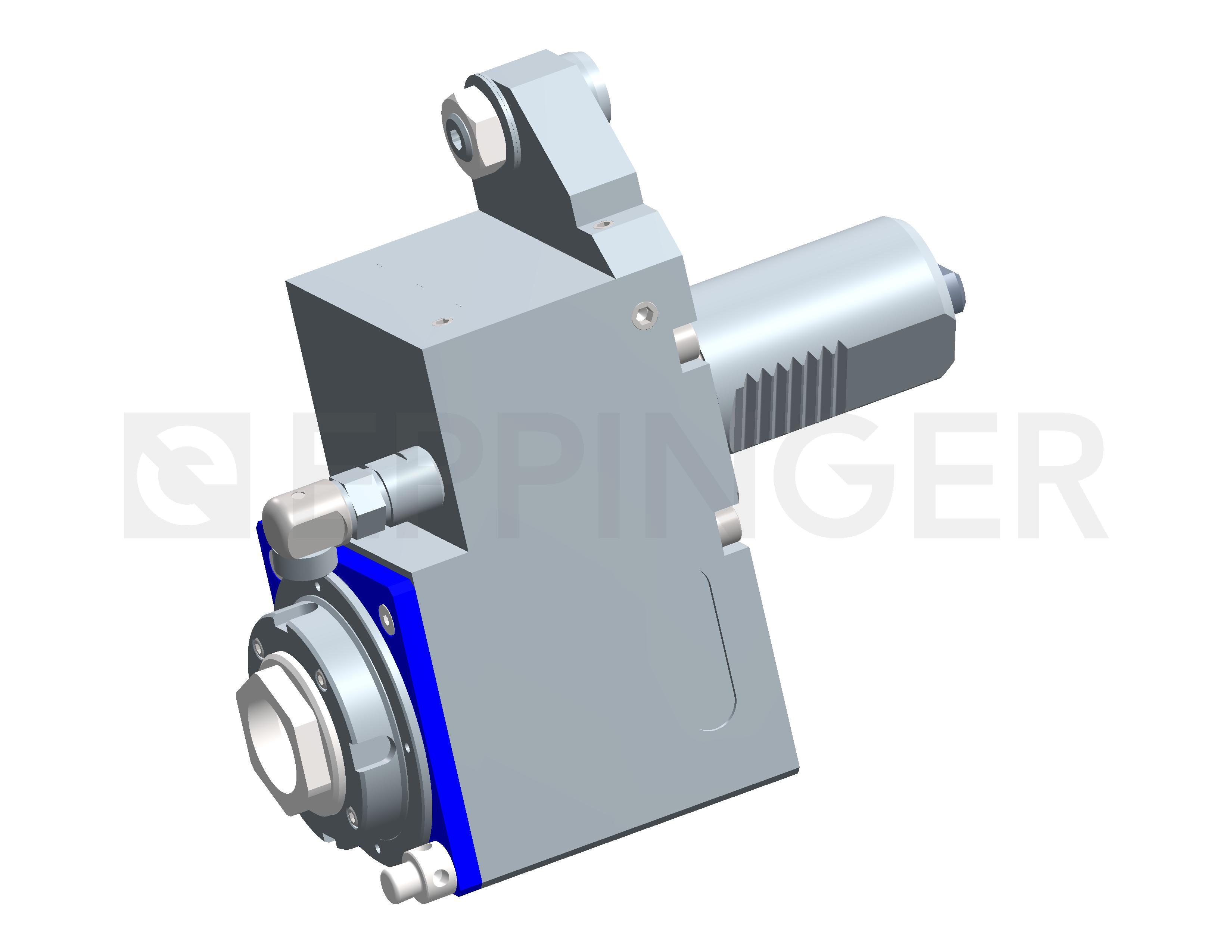

Drilling and milling head, straight, right hand offset adjustable alignment pin collet chuck, ER32A, PRECI-FLEX® external coolant supply

Part Number 7.074.726
for 4 Machines
Ratio1:1
rpm at Inputmax. 6000 rpm
rpm at Outputmax. 6000 rpm
Torque at Outputmax. 70 Nm
Direction of Rotation
Scope of Deliverysupplied with wrench, excluding collets
AccessoriesCollets see Equipment for Toolholders Z2.1 PRECI-FLEX® Adapter Spindle cover see P99.1
Additional CAD Files:

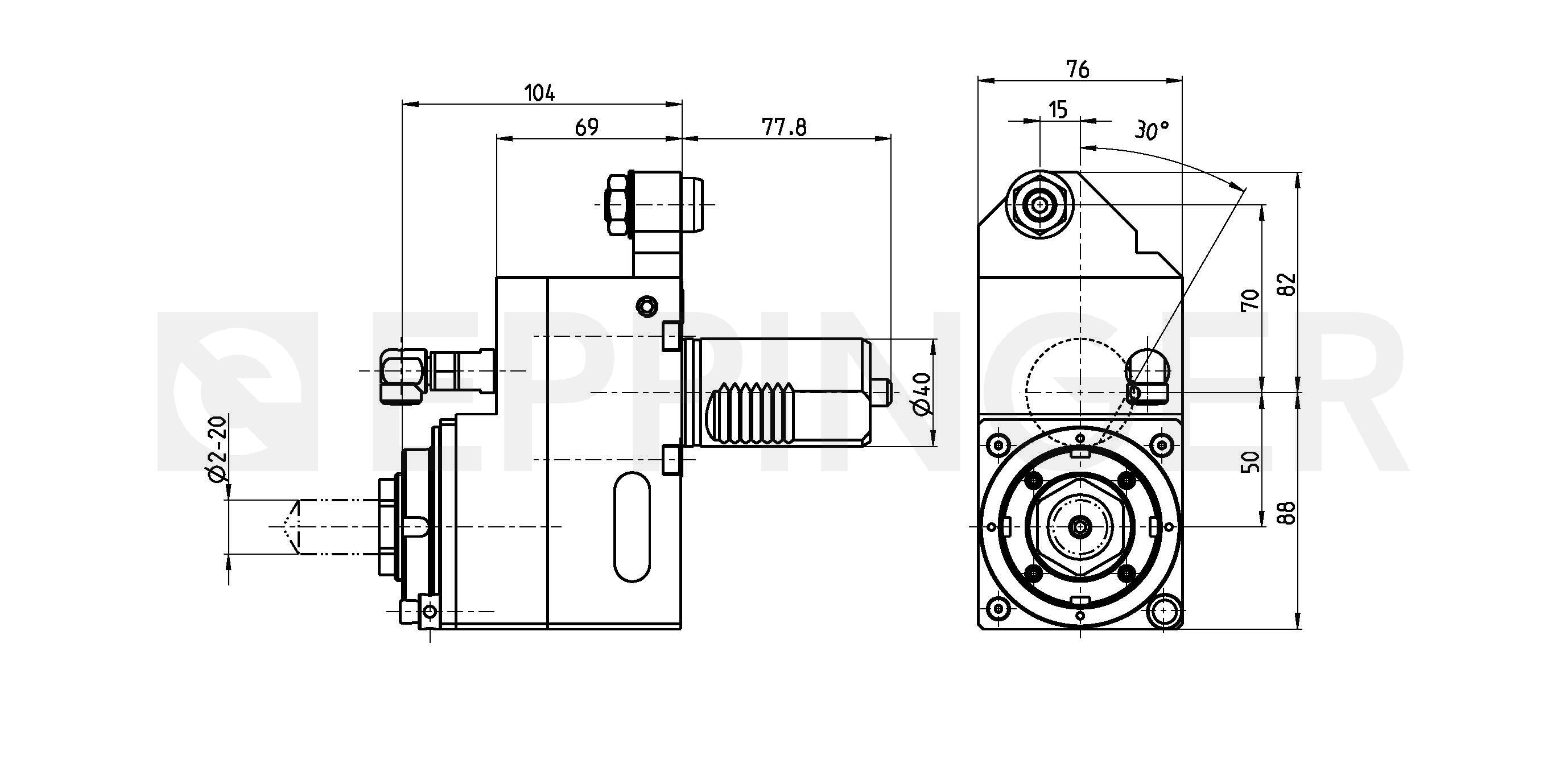

2D-View
3D-View
2D-View
3D-View / QR-Code

Upload to Smart Phone
